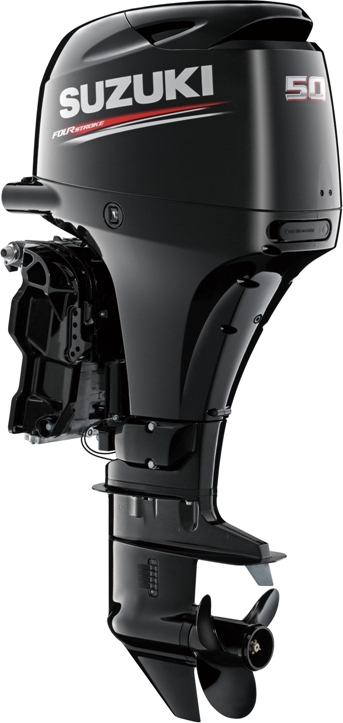

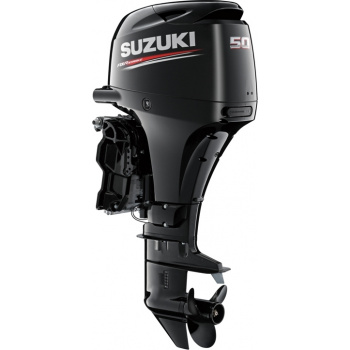

Delivering superior fuel efficiency and high performance—The new generation DF50A and DF40A.
| MODEL |
DF50A |
|---|
| RECOMMENDED TRANSOM HEIGHT mm |
S:381, L:508 |
|---|
| STARTING SYSTEM |
Electric |
|---|
| WEIGHT kg *4 |
S:102, L:104 |
|---|
| ENGINE TYPE |
DOHC 12-Valve |
|---|
| FUEL DELIVERY SYSTEM |
Multi-Point Sequential Electronic Fuel Injection |
|---|
| NO. OF CYLINDERS |
3 |
|---|
| PISTON DISPLACEMENT cm3 |
941 |
|---|
| BORE ×STROKE mm |
72.5 × 76 |
|---|
| MAXIMUM OUTPUT kW |
36.8 |
|---|
| FULL THROTTLE OPERATING RANGE rpm |
5,300-6,300 |
|---|
| STEERING |
Remote |
|---|
| OIL PAN CAPACITY Lit. |
2.7 |
|---|
| FUEL TANK CAPACITY Lit. |
25 (Optional) |
|---|
| IGNITION SYSTEM |
Fully-transistorized |
|---|
| ALTERNATOR |
12V 19A |
|---|
| ENGINE MOUNTING |
Shear Mount |
|---|
| TRIM METHOD |
Power Trim and Tilt |
|---|
| GEAR RATIO |
2.27:1 |
|---|
| GEAR SHIFT |
F-N-R |
|---|
| EXHAUST |
Through Prop Hub Exhaust |
|---|
PROPELLER SELECTION (Pitch) *5
All propellers are the 3-blade type |
9"-17" |
|---|
